Idler roller

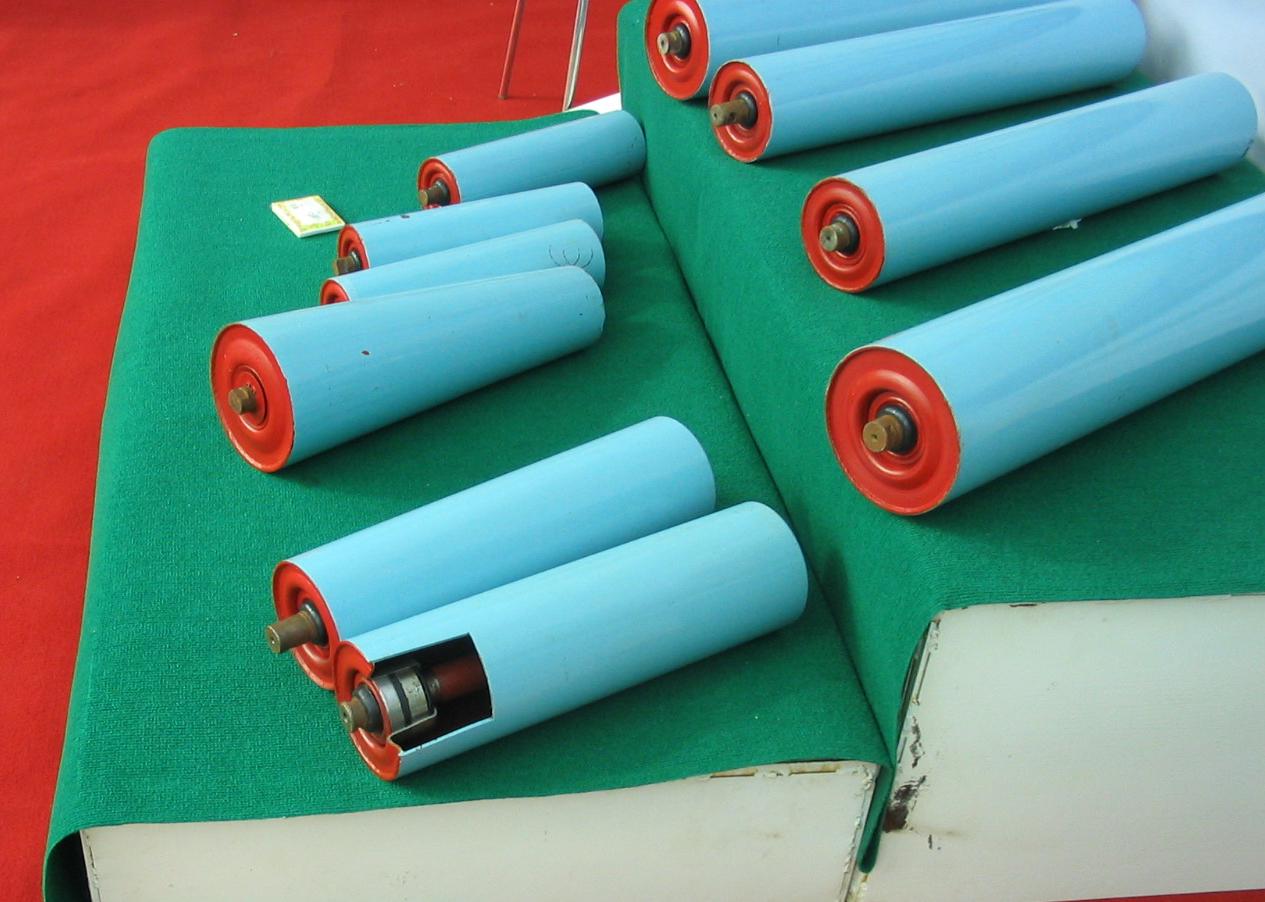

Idler roller is the key component of belt conveyor, specification: φ 89, φ 108, φ 133, φ 159, φ 194 and φ 219 series, covering belt conveyor belt width of B500~B2400. The belt conveyor idler produced by our company completely meets the requirements of GB/T10595-2017 and MT821-2006 quality standards. High-quality professional welded pipe, stamped bearing seat and large clearance bearing of famous brand manufacturer are adopted for the idler roller, which are produced and processed by professional equipment automatic assembly line. The idler roller have high coaxiality, small rotating resistance, good dustproof and waterproof performance, long service life and reliable quality. Optional imported bearing according to user's requirements.
| Series | Name | specification | drawing number | bandwidth |
| SJ, DTL mining belt conveyor | idler groove idler | φ194×600(670) | SSJ194C.1(A) | 1600(1800) |
| φ219×750(800) | SSJ219C.1(A) | 2000(2200) | ||
| V-shaped lower idler | φ194×900(1000) | SSJ194C.2(A) | 1600(1800) | |
| φ219×1100(1250) | SSJ219C.2(A) | 2000(2200) | ||
| Parallel lower idler | φ194×800(2000) | SSJ194C.3(A) | 1600(1800) | |
| φ219×2200(2500) | SSJ219C.3(A) | 2000(2200) | ||
| Buffer roller | φ194×600(670) | SSJ194C.4(A) | 1600(1800) | |
| φ219×750(800) | SSJ219C.4(A) | 2000(2200) | ||
| DT Ⅱ (A) Fixed Belt Conveyor | Carrier Trough (Forward Tilting) Carrier | φ194×600(670) | G709 | 1600(1800) |
| φ219×750(800) | G812 | 2000(2200) | ||
| V-shaped (forward) idler | φ194×1000 | G716 | 1800 | |
| φ219×1100 | G818 | 2000 | ||
| φ219×1250 | G820 | 2200 | ||
| Friction upper and lower aligning idler | φ194×600(890)/670 | G709M | 1600(1800) | |
| φ219×750(800) | G812M | 2000(2200) | ||
| Parallel upper and lower roller | φ194×1800(2000) | G724 | 1600(1800) | |
| φ219×2200(2500) | G826 | 2000(2200) | ||
| Buffer carrier roller | φ194×600(670) | G709H | 1600(1800) | |
| φ219×750(800) | G812H | 2000(2200) |
